Event-Aligned Visual Action Reasoning for World Action Models

Yang, Xiaomeng; Wu, Yushu; Gao, Yi; Lei, Yuhao; Zhang, Xuan; Zhao, Pu; Wang, Yanzhi

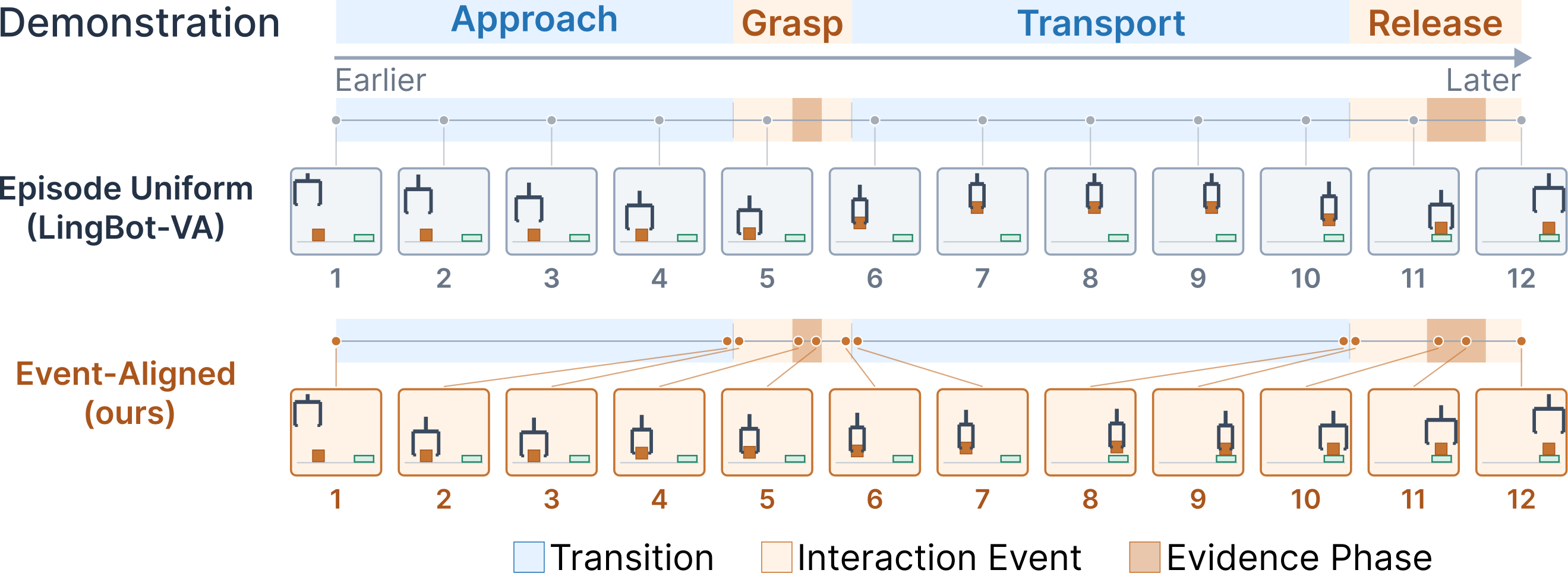

Twelve sampled frames over a demonstration with approach, grasp, transport and release phases, shown twice. Episode Uniform, as in LingBot-VA, samples at fixed intervals, so most frames fall in the long approach and transport transitions. Event-Aligned, ours, places the frames around the grasp and release interactions and their evidence phases. — **Interaction-dependent temporal granularity of visual reasoning.** (a) Our event-aligned visual action reasoning framework organizes visual-action targets around interaction events and transitions. (b) DOMINO success rates under a matched sequence budget of training visual-action slots.

DOMINO success rate

42.83%

+10.26 points vs. LingBot-VA (32.57%)

RoboTwin 2.0 average success rate

92.30%

+1.09 points vs. LingBot-VA (91.21%)

DOMINO Level 1 → 2 transfer, no adaptation

29.4%

vs. 16.9% for LingBot-VA; Level 3: 9.7% vs. 6.8%

Imagination chunks per episode

4.49

vs. 6.22 for LingBot-VA, on episodes both solve

Method

We propose an event-aligned visual action reasoning framework that organizes visual prediction according to the reasoning demands of robot manipulation. Rather than treating visual prediction as a uniform continuation of the sampled trajectory, our framework structures visual reasoning around task-relevant interactions and the visual context needed to support the corresponding actions. It consists of event-aligned visual-action reasoning and execution validity prediction.

Three rules for event-aligned chunks

Rule 1
Event boundaries

Keep each chunk within one event: one chunk per transition, one or more per interaction.
Rule 2
Phase-dependent density

Keep interaction evidence at native resolution and sample surrounding motion more sparsely.
Rule 3
Interaction boundaries

Preserve the first and last frame of each interaction to retain its starting and ending context.

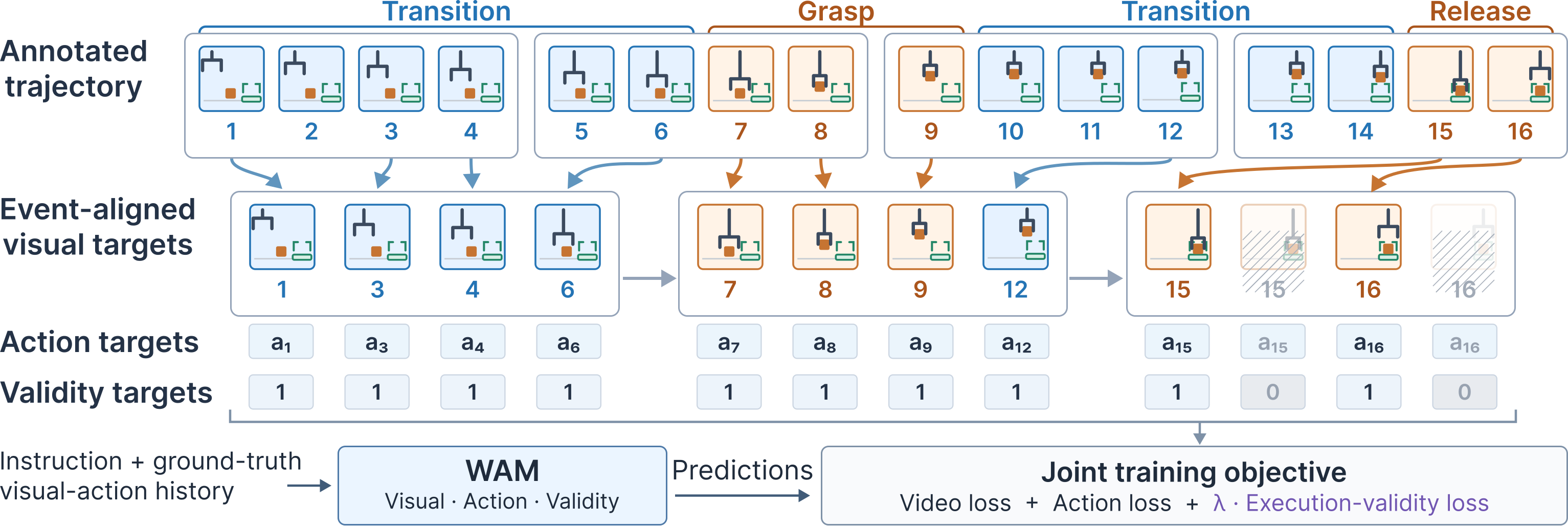

An annotated 16-frame trajectory with transition, grasp, transition and release events is reorganized into event-aligned visual targets of four frames each. Each target frame keeps its paired action. Padded repeats of frames 15 and 16 get validity target 0. The WAM is trained on the visual, action and validity predictions with a video loss, an action loss and a weighted execution-validity loss. — **Interaction-Structured Visual Reasoning framework.** Event-aligned chunks allocate visual reasoning according to interaction structure, while execution validity prediction identifies which generated actions to execute.

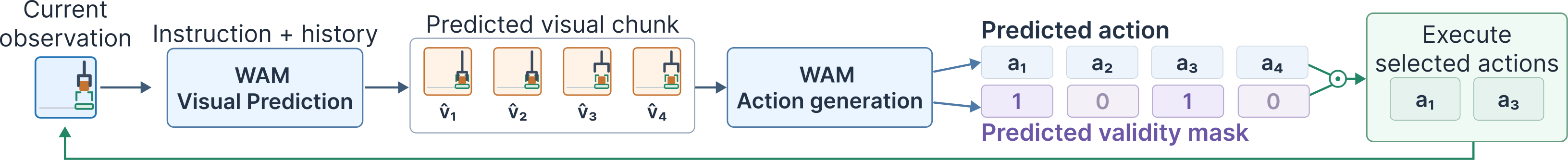

Inference loop: from the current observation, instruction and history, the WAM predicts a visual chunk of four frames, then generates four actions with a predicted validity mask 1, 0, 1, 0. Only actions a1 and a3 are executed, and the new observation is fed back. — **Interaction-Structured Visual Reasoning framework.** Event-aligned chunks allocate visual reasoning according to interaction structure, while execution validity prediction identifies which generated actions to execute.

Results

We evaluate on DOMINO (35 dynamic-manipulation tasks) and RoboTwin 2.0 (50 bimanual tasks). SR denotes success rate; MS denotes manipulation score.

Benchmarks

Method	DOMINO		RoboTwin 2.0
Method	SR	MS	Clean SR	Rand. SR	Avg. SR
π₀	8.17	23.96	65.92	58.40	62.16
π_0.5	9.63	26.17	82.74	76.76	79.75
PUMA	17.20	34.97	–	–	–
DynamicWAM^*	38.20	53.20	–	–	–
ABot-M0	–	–	81.20	80.40	80.80
Motus	–	–	88.66	87.02	87.80
ImageWAM	18.86	35.47	93.20	93.56	93.38
Fast-WAM	19.09	35.33	91.88	91.78	91.83
LingBot-VA	32.57	45.55	92.93	91.55	92.24
LingBot-VA	32.57	45.55	92.18^†	90.24^†	91.21^†
Ours	42.83	55.92	93.02	91.58	92.30

LingBot-VA on RoboTwin: published results (upper row) and our re-evaluation under the same inference setting as ours (†). ^*DynamicWAM uses 150 clean and 150 randomized demonstrations per task.

Our method reaches 42.83% SR on DOMINO, a 10.26-point gain over LingBot-VA, and 92.30% average SR on RoboTwin 2.0, up 1.09 points over LingBot-VA (91.21%) under the same evaluation setting.

Transfer across DOMINO levels

Method	L1 → L2		L1 → L3
Method	SR	MS	SR	MS
PUMA	10.5	30.28	4.6	20.16
ImageWAM	13.3	30.44	2.8	15.09
Fast-WAM	13.5	31.56	2.4	15.34
LingBot-VA	16.9	30.37	6.8	19.36
Ours	29.4	45.42	9.7	24.23

Level 1 policies evaluated on ten tasks at Levels 2 and 3. Only PUMA uses target-level adaptation (LoRA).

Our policy achieves the highest SR and MS at both levels without target-level adaptation. Level 3 success remains low across all methods.

What matters: evidence, context and validity

Sampling	Granularity	Placement	Slots	Share in evidence	DOMINO SR	MS
LingBot-VA (reference)	Episode	Uniform	291,296	32.35%	32.57	45.55
Episode Uniform	Episode	Uniform	211,664	38.25%	29.17	41.32
Event Uniform	Event	Uniform	211,664	47.55%	39.60	52.26
Reduced Evidence	Event	Transition-Protected	268,592	23.05%	36.17	48.36
Reduced Context	Event	Evidence-protected	173,216	67.03%	37.83	52.99
Event-aligned (Ours)	Event	Evidence-protected	211,664	54.86%	42.83	55.92
Event-aligned w/o execution validity head			211,664		39.11	52.33
Event-aligned w/ execution validity head			211,664		42.83	55.92

Slots include padded repetitions; share in evidence measures how many fall within interaction evidence. SR bars use a 0–50 scale; the line marks LingBot-VA (32.57). All variants except the LingBot-VA reference and no-head ablation use the validity head.

Event alignment, dense interaction evidence and surrounding context all improve performance. The execution validity head raises SR from 39.11% to 42.83%.

Fewer imagination calls, fewer commands

On 738 episodes both methods solve, ours uses fewer visual rollouts and action commands. Values are averaged across tasks.

Visual rollouts requested per episode

LingBot-VA6.22

Ours4.49

Action commands issued per episode

LingBot-VA167.18

Ours106.46

Demos

Choose a DOMINO task to compare rollouts and our model’s imagined future.

Rollouts: LingBot-VA vs. ours

Prediction vs. reality

The real execution (left) next to our model's imagined future (right). While each chunk executes, the right half shows that chunk's last predicted frame. For visualization, predicted frames are decoded with video tokens integrated to s = 1.0; inference uses s = 0.6.

Real-world experiments

We fine-tune on a Unitree G1 humanoid with Dex1-1 grippers for three bimanual tasks: Tennis Ball Insertion, Bimanual Cup Placement and Drawer Manipulation.

Method	Tennis Ball Insertion	Bimanual Cup Placement	Drawer Manipulation
LingBot-VA	44%	24%	64%
Ours	52%	28%	56%

Success rate on three real-world tasks, 25 rollouts each.

Real-world task examples

Tennis Ball Insertion

Bimanual Cup Placement

Drawer Manipulation

BibTeX

@misc{yang2026eventaligned,
  title         = {Event-Aligned Visual Action Reasoning for World Action Models},
  author        = {Yang, Xiaomeng and Wu, Yushu and Gao, Yi and Lei, Yuhao and Zhang, Xuan and Zhao, Pu and Wang, Yanzhi},
  year          = {2026},
  eprint        = {2610.09427},
  archivePrefix = {arXiv},
  primaryClass  = {cs.CV},
  url           = {https://arxiv.org/abs/2610.09427}
}
